mc_control::fsm::MessageState Struct Reference

#include <mc_control/fsm/states/Message.h>

Inheritance diagram for mc_control::fsm::MessageState:

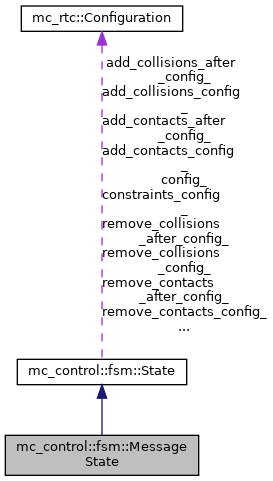

Collaboration diagram for mc_control::fsm::MessageState:

Public Member Functions
void	configure (const mc_rtc::Configuration &config) override
void	start (Controller &) override
bool	run (Controller &) override
void	teardown (Controller &) override
Public Member Functions inherited from mc_control::fsm::State
virtual	~State ()
void	configure_ (const mc_rtc::Configuration &config)
void	start_ (Controller &ctl)
void	teardown_ (Controller &ctl)
virtual void	stop (Controller &)
virtual bool	read_msg (std::string &)
virtual bool	read_write_msg (std::string &, std::string &)
const std::string &	output () const noexcept
const std::string &	name ()
void	name (const std::string &n)

Protected Attributes
std::string	prefix_
std::string	message_
std::string	logType_ = "info"
bool	gui_ = false
std::vector< std::string >	guiCategory_
std::string	labelName_
Protected Attributes inherited from mc_control::fsm::State
mc_rtc::Configuration	add_contacts_config_
mc_rtc::Configuration	remove_contacts_config_
mc_rtc::Configuration	add_contacts_after_config_
mc_rtc::Configuration	remove_contacts_after_config_
mc_rtc::Configuration	add_collisions_config_
mc_rtc::Configuration	remove_collisions_config_
mc_rtc::Configuration	add_collisions_after_config_
mc_rtc::Configuration	remove_collisions_after_config_
mc_rtc::Configuration	constraints_config_
mc_rtc::Configuration	tasks_config_
mc_rtc::Configuration	remove_posture_task_
mc_rtc::Configuration	config_
std::vector< mc_solver::ConstraintSetPtr >	constraints_
std::vector< std::pair< mc_tasks::MetaTaskPtr, mc_rtc::Configuration > >	tasks_
std::vector< mc_tasks::PostureTaskPtr >	postures_

Additional Inherited Members
Protected Member Functions inherited from mc_control::fsm::State
void	output (const std::string &o)

Detailed Description

Implements a simple Message state to display debug information in the FSM

Messages can be shown in the CLI as mc_rtc::log calls, or in the GUI as Label elements.

This state always outputs "OK" and is always completed.

Member Function Documentation

configure()

void mc_control::fsm::MessageState::configure ( const mc_rtc::Configuration &  config )

overridevirtual

Called to configure the state.

This is called multiple times:

• once for every level of state inheritance
• once with the executor configuration, this is the FSM global executor, the Meta state executor, the Parallel state or any state that handle other states

The default implementation simply loads the provided configuration into the config_ protected members. You can override this behavior to implement a more complex loading logic.

You can access this configuration either via the config_ variable

Reimplemented from mc_control::fsm::State.

run()

bool mc_control::fsm::MessageState::run ( Controller &  ctl )

overridevirtual

Called every iteration until it returns true

Implements mc_control::fsm::State.

start()

void mc_control::fsm::MessageState::start ( Controller &  ctl )

overridevirtual

Called before the state starts being run

This will be called only once with the state fully configured.

Implements mc_control::fsm::State.

teardown()

void mc_control::fsm::MessageState::teardown ( Controller &  ctl )

overridevirtual

Called right before destruction

Implements mc_control::fsm::State.

Member Data Documentation

gui_

bool mc_control::fsm::MessageState::gui_ = false

protected

guiCategory_

std::vector<std::string> mc_control::fsm::MessageState::guiCategory_

protected

labelName_

std::string mc_control::fsm::MessageState::labelName_

protected

logType_

std::string mc_control::fsm::MessageState::logType_ = "info"

protected

message_

std::string mc_control::fsm::MessageState::message_

protected

prefix_

std::string mc_control::fsm::MessageState::prefix_

protected

---

The documentation for this struct was generated from the following file:

• include/mc_control/fsm/states/Message.h
