mc_rtc::gui::details::ComboInputImpl< GetT, SetT > Struct Template Reference

#include <mc_rtc/gui/ComboInput.h>

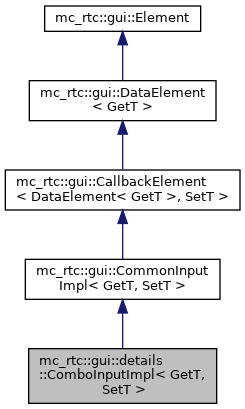

Inheritance diagram for mc_rtc::gui::details::ComboInputImpl< GetT, SetT >:

Collaboration diagram for mc_rtc::gui::details::ComboInputImpl< GetT, SetT >:

Public Member Functions
	ComboInputImpl (const std::string &name, const std::vector< std::string > &values, GetT get_fn, SetT set_fn)
void	write (mc_rtc::MessagePackBuilder &writer)
	ComboInputImpl ()
Public Member Functions inherited from mc_rtc::gui::CommonInputImpl< GetT, SetT >
	CommonInputImpl (const std::string &name, GetT get_fn, SetT set_fn)
	CommonInputImpl ()
Public Member Functions inherited from mc_rtc::gui::CallbackElement< DataElement< GetT >, SetT >
bool	handleRequest (const mc_rtc::Configuration &data)
	CallbackElement (const std::string &name, SetT cb, Args &&... args)
	CallbackElement ()
Public Member Functions inherited from mc_rtc::gui::DataElement< GetT >
void	write (mc_rtc::MessagePackBuilder &builder)
	DataElement (const std::string &name, GetT get_fn)
	DataElement ()
Public Member Functions inherited from mc_rtc::gui::Element
const std::string &	name () const
int	id () const
void	id (int idIn)
void	write (mc_rtc::MessagePackBuilder &)
bool	handleRequest (const mc_rtc::Configuration &)
	Element ()

Static Public Member Functions
static constexpr size_t	write_size ()
Static Public Member Functions inherited from mc_rtc::gui::DataElement< GetT >
static constexpr size_t	write_size ()
Static Public Member Functions inherited from mc_rtc::gui::Element
static constexpr size_t	write_size ()

Static Public Attributes
static constexpr auto	type = Elements::ComboInput

Additional Inherited Members
Protected Member Functions inherited from mc_rtc::gui::Element
	Element (const std::string &name)
Protected Attributes inherited from mc_rtc::gui::CallbackElement< DataElement< GetT >, SetT >
SetT	cb_
Protected Attributes inherited from mc_rtc::gui::DataElement< GetT >
GetT	get_fn_
Protected Attributes inherited from mc_rtc::gui::Element
std::string	name_
int	id_

Detailed Description

template<typename GetT, typename SetT>
struct mc_rtc::gui::details::ComboInputImpl< GetT, SetT >

ComboInput should display a combo box with the set of choices provided by values

Template Parameters

GetT	Should return the current choice
SetT	Should accept the choice made by the user

Constructor & Destructor Documentation

ComboInputImpl() [1/2]

template<typename GetT , typename SetT >

mc_rtc::gui::details::ComboInputImpl< GetT, SetT >::ComboInputImpl ( const std::string &  name, const std::vector< std::string > &  values, GetT  get_fn, SetT  set_fn  )

inline

ComboInputImpl() [2/2]

template<typename GetT , typename SetT >

mc_rtc::gui::details::ComboInputImpl< GetT, SetT >::ComboInputImpl ( )

inline

Invalid element

Member Function Documentation

write()

template<typename GetT , typename SetT >

void mc_rtc::gui::details::ComboInputImpl< GetT, SetT >::write ( mc_rtc::MessagePackBuilder &  writer )

inline

write_size()

template<typename GetT , typename SetT >

static constexpr size_t mc_rtc::gui::details::ComboInputImpl< GetT, SetT >::write_size ( )

inlinestaticconstexpr

Member Data Documentation

type

template<typename GetT , typename SetT >

constexpr auto mc_rtc::gui::details::ComboInputImpl< GetT, SetT >::type = Elements::ComboInput

staticconstexpr

---

The documentation for this struct was generated from the following file:

• include/mc_rtc/gui/ComboInput.h
